TOPEC® Slab formwork - 373 m² Package

Pickup from Yard, net value

€235.00 / m²

Request this product

Offer number:	SW10089
Storage location
Condition:	new, second hand

Didn't find the right configuration? Or would you rather rent?

Please contact us for a tailor-made quote.

Product information "TOPEC® Slab formwork - 373 m² Package "

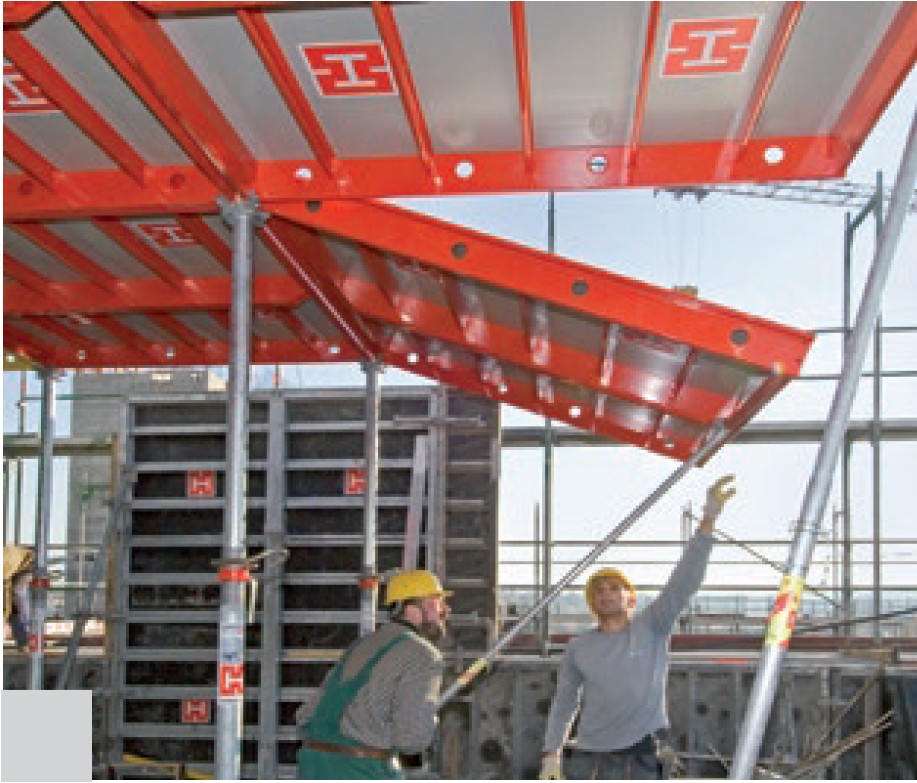

The TOPEC modular slab formwork provides fast forming times and maximum safety during forming and stripping operations from the ground.

Slab formwork TOPEC® The aluminum modular formwork system without beams. The up to 180 x 180 cm panels are erected by a maximum of two men. They are simply hooked into the bearing, lifted up, and propped.

Panel widths 45 | 60 | 75 | 90 | 120 | 180 cm

Panel lengths 90 | 180 cm

Adjustment panel 55 - 90 x 90 cm | 55 - 90 x 180 cm

Profile thickness 14 cm aluminum frame profile

Form lining types ECOPLY Q plastic lining | Plywood (340 g/m²)

Assembly/stripping times from t = 0.2 h/m²

Maximum slab thickness up to 75 cm

Ideal in combination with EUROPLUSnew props with quick-lowering mechanism

This package consist of:

Shape	Item	Number	Description
Used	548480	2	Euro Lattice Box
New	602667	60	TOPEC Giant Panel 180/180 Ecoply
New	602668	60	TOPEC Panel 180/90 Ecoply
New	602669	30	TOPEC Panel 180/75 Ecoply
New	602671	30	TOPEC Panel 180/45 Ecoply
New	465410	220	TOPEC Bearing
New	487880	20	ADJUSTMENT BEAM 90
New	487890	10	ADJUSTMENT BEAM 180
New	492806	45	TOPEC TRANSVERSE BEAM
New	565434	4	ALU-ERECTION ROD 365
New	570151	4	ROD EXTENSION 180
New	487673	30	TOPEC Edge Support
Used	422558	40	HEAD SUPPORT SHOE

Package Price is: 87.585,- €

For additional information please go to:

TOPEC | Hünnebeck
