Spider® UpPro – P1009 GHS

Pickup from Yard, net value

€5,600.00

Request this product

Didn't find the right configuration? Or would you rather rent?

The first UL-listed, three-phase,

2,200-lb (1000kg) personnel traction hoist

for guided high speeds (GHS)

in North America increases

productivity, uptime and safety

for elevator and other heavy

lifting applications.

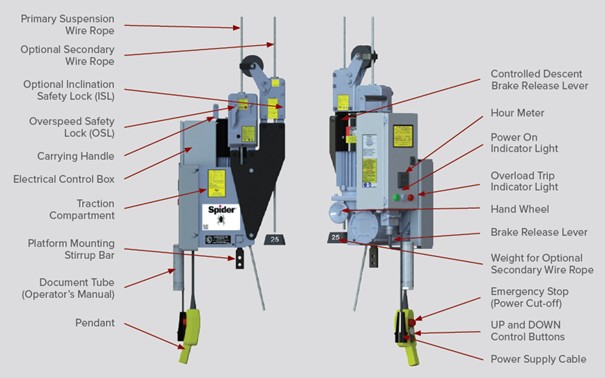

Ø High lifting capacity, variable travel speeds and industry-best power range

· › Ensured operator safety with built-in overload, externally mounted Overspeed Safety Lock (OSL) and optional Inclination Safety Lock (ISL)

Ø Self-rescue of workers and platforms from controlled descent feature

Ø Optimal power management and soft starts and stops with variable frequency drive (patent pending)

Ø Maximized uptime with unmatched support from the industry's largest branch network.

UpPro P1009 GHS Specifications

Capacity

› 2,200 lbs (1,000 kg)

Travel Speed

› up to 60 fpm (18 mpm)

Power

› 230V +10%, -20%; 60 Hz, 3-phase

Amperage at working load limit

› 12 Amps

Wire Rope

› ⅜ in. (9.5 mm) with 15,100 lb (6,849 kg) breaking strength

Weight

› Hoist and OSL: 161 lbs (73 kg)

› Hoist, OSL and ISL: 180 lbs (81.5 kg)

Dimensions

› 20 in. (508 mm) wide by 38 in. (965 mm) tall from top of bracket to bottom of mount

For more information, please downloard the brochure here:
