GEDA TP 4400 – TRANSPORT PLATFORM

Price on request

Request this product

Didn't find the right configuration? Or would you rather rent?

The GEDA TP 4400 has two separate control systems and can be used either

as a material hoist only or as a transport platform for passengers and

materials. The transport platform control with a speed of 40 ft/min is activated

for transporting passengers and materials. For transporting construction

materials only, the device is switched to the material hoist mode with a lifting

speed of 80 ft/min.

One device, numerous possibilities: the double-mast GEDA TP 4400 transport

platform ideally adapts to virtually any conditions on site thanks to the

convenient modular system with different platform versions and different load

capacities. The large loading platform variants of the GEDA TP 4400 offer

plenty of space – even for transporting particularly heavy and bulky materials.

Despite high load capacities of up to 4400 lbs, the proven double mast system

ensures a stable and smooth travelling motion.

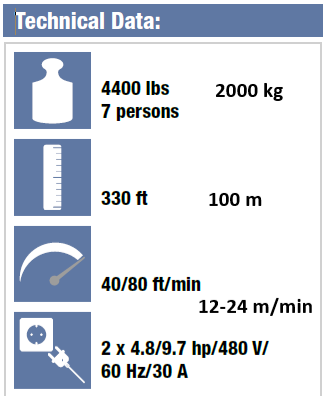

Load up to: 4400 lbs – 2.000 kg

7 persons

Height up to: 330 ft – 100 m

Lift speed up to: 40-80 ft/min – 12-24 m/min

Power: 2 x 4.8/9.7 hp/480 V/ 60 Hz/30 A
