AlumaDEK 10 m Perimeter Package for 35 cm Slab, 1,83 m Ledger Spacing
Price on request
| Offer number: | US-DEK-1425 |
|---|---|
| Storage location | USA |
| Condition: | second hand |
Didn't find the right configuration? Or would you rather rent?
Please contact us for a tailor-made quote.Product information "AlumaDEK 10 m Perimeter Package for 35 cm Slab, 1,83 m Ledger Spacing"

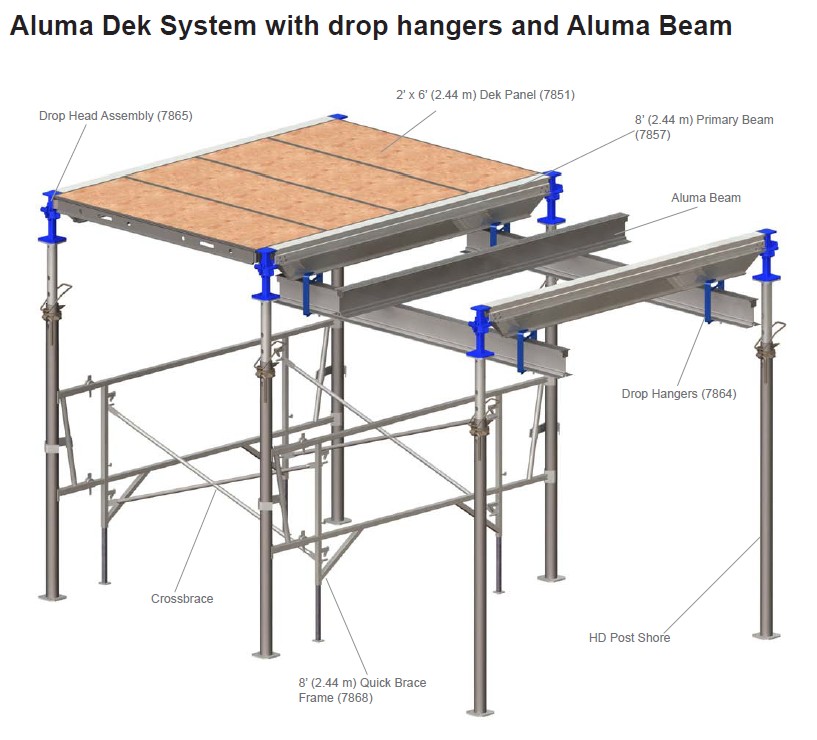

Aluma DEK is a modular formwork with aluminum components, mainly geared towards the construction of large slab areas and projects with short lead times.
There are in principal two types within its range:
1.
Aluma DEK PANEL: consisting of
aluminium framed panels and integrated board.
Suitable for high performance.
2.
Aluma DEK PLY: consisting of beams
and plywood.
Suitable for slabs with high concrete finish requirements and/or irregular
geometries.
This Packages consist of:
|
Item Code |
Item Description |
Number |
|
11324 |
DEK DROPHEAD ASS'Y W/SPIGOT |
6 |
|
7867 |
DEK QUICK BRACE FRAME 6' |
6 |
|
8361 |
SECONDARY BEAM 6' ALUMA DEK |
48 |
|
8931 |
GUARDRAIL POST W/ BASE DEK |
6 |
|
8932 |
ANTI-UPLIFT BRACKET ALUMA DEK |
6 |
|
9343 |
PRIMARYBM TIEDOWN LUG ZINC DEK |
6 |
|
9583 |
CANTILEVER BEAM 10' DEK |
6 |
|
2213 |
6'x2' Cross Brace |
12 |
Post is not included in this package!
Drophead system
Quick and tidy stripping thanks to the drophead which allows the formwork to be lowered by 15 cm without falling to the ground.
Collective safety
The assembly is carried out from the bottom, and enables the pre-
assembly of the grid, guaranteeing the stability of the system from
the first grid.
For additional information please go to:
At Work For You™ | Aluma Systems
Additonal Resources
